Online Modular VRLA Compatible UPS
EnerbyteTech’s Modular UPS offers reliable and flexible power with a hot‑swappable design including power, bypass, monitor, and distribution modules, all fitting standard 19‑inch cabinets.
It supports a 138–485V input range, redundant communication buses, and maintains operation during maintenance. With up to 0.99 input power factor and 96% efficiency, it reduces energy waste.
The system allows parallel expansion up to six units and flexible battery setups (30–50 units) for long backup. With 1.0 output power factor, it handles unbalanced loads easily.

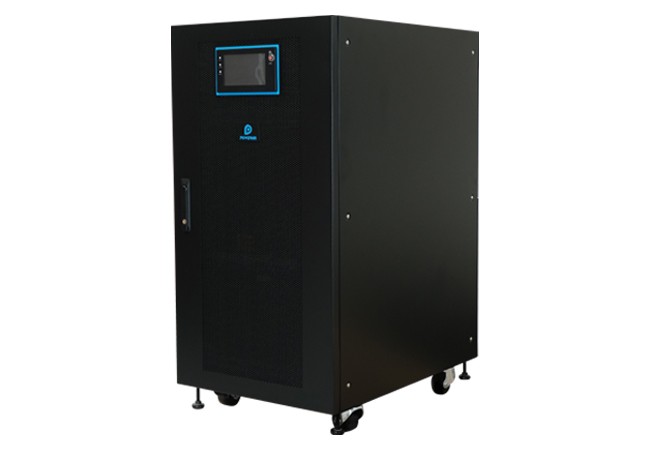

A 7‑inch color touchscreen enables real‑time monitoring and smart management, making it ideal for data centers, telecom, and industrial applications.
Choose your Model
Technical Specification
Modular UPS 30KW Capacity with 10KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Generator input | Support |
| Bypass frequency range | ±10% |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 58dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 54A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 142kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 50KW Capacity with 10KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Generator input | Support |
| Bypass frequency range | ±10% |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 61dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 90A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 153kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 100KW Capacity with 10KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Generator input | Support |
| Bypass frequency range | ±10% |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 68dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 180A/162A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 295kg |
| Height | 2000mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 45KW Capacity with 15KW Module Compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Bypass frequency range | ±10% |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 58dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 54A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 142kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 75KW Capacity with 15KW Module Compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Bypass frequency range | ±10% |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 61dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 90A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 153kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 150KW Capacity with 15KW Module Compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Bypass frequency range | ±10% |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 68dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 180A/162A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 295kg |
| Height | 2000mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 60KW Capacity with 20KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Frequency protection range | ±10% |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 58dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 54A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 142kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 100KW Capacity with 20KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Bypass frequency range | ±10% |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 61dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 90A/72A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 153kg |
| Height | 1200mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Technical Specification
Modular UPS 200KW Capacity with 20KW module compatible
| Input | |
|---|---|
| Nominal voltage | 380/400/415Vac, (3Ph+N+PE) |
| Operating voltage range | 138~305Vac for 40% Load; 305~ 485Vac for 100% Load |
| Operating frequency range | 40Hz-70Hz |
| Power Factor | ≥0.99 |
| Bypass voltage range | Max. voltage:220V: +25%(optional +10%,+15%,+20%); 230V: +20%(optional +10%,+15%); 240V: +15%(optional +10%); Min. voltage: -45% (optional -10%,-20%,-30%) |
| Harmonic distortion (THDi) | ≤3% (100% linear load) |
| Bypass frequency range | ±10% |
| Generator input | Support |
| Output | |
|---|---|
| Output voltage | 380/400/415Vac, (3Ph+N+PE) |
| Output frequency | (50/60±0.1%)Hz |
| Crest factor | 3:1 |
| Harmonic distortion (THD) | ≤2% with linear load ≤4% with non linear load |
| Power Factor | 1.0 |
| Voltage Regulation | ±1% |
| Efficiency | UP to 95.8% |
| Environment | |
|---|---|
| Operating Temperature | 0°C~40°C |
| Storage Temperature | -25°C ~ 55°C |
| Relative Humidity | 0 ~95% (non condensing) |
| Altitude | < 1500m |
| Noise level | < 68dB |
| System Features | |
|---|---|
| Transfer time | Utility to Battery : 0ms; Utility to bypass: 0ms |
| Overload | 110% overload for 60 min; 125% overload for 10 min; 150% overload for 1 min 135% overload for long term; >1000% overload for 100 ms |
| Communication interface | CAN, RS485, Parallel, Dry contact port, Relay card(mandatory), SNMP card(mandatory),Battery temperature sensor(mandatory) |
| Battery | |
|---|---|
| Battery Voltage | Optional Voltage: ±180/192/204/216/228/240/252/264/276/288/300Vdc (30/32/34/36/38/40/42/44/46/48/50pcs optional); 360Vdc~600Vdc (30~50 pcs, 36 pcs define, 36~50 pcs no power derating; 32~34 pcs output power factor 0.9; 30 pcs output power factor 0.8;) |
| Charging current (Max) | 180A/162A |
| Standard | |
|---|---|
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| EMC | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Physical | |
|---|---|
| Weight | 295kg |
| Height | 2000mm |
| Width | 600mm |
| Length | 850mm |
Features
- High input power factor up to 0.99.
- Three-level topology design with up to 95.8% efficiency.
- THDi < 3% for 100% non-linear load.
- Sleeping mode for low load conditions.
- Supports parallel operation for up to 6 units.
- Allows sharing of batteries among parallel UPS units.
- Choose from 30 to 50 batteries per group.
- Large charging current for extended backup.
- Output power factor of 1.0; handles 100% unbalanced loads.
- Adapts to both inductive and capacitive loads.
- 7-inch (standard) and 10-inch (optional) colour touch LCD screens.
- Supports RS485, SNMP, dry contact cards, RJ45, and CAN interfaces.
- Upgradeable CAN for power module inside the cabinet.
- Supports upper and bottom cable access (60K/150K/300K bottom entry, 300K top entry).
- EPO & REPO functions included.
- Modular design includes power, bypass, and monitoring modules for easy integration.
- Hot-swappable power, bypass, monitoring, and ECU control modules.
- Input voltage range of 138-485V, with derating below 305V.
- Utilizes multiple digital buses and redundant parallel control for system reliability.
- Continues operation in single or parallel mode if any module fails.
Online 3:3 Transformer less UPS
Online 3:3 Transformer based UPS
Servo Prime Series
Support Center
Our dedicated support team ensures 24/7 assistance, providing technical support, addressing queries, and receiving feedback at any time. We are just one call away.
Product Warranty
Register your Enerbyte Tech product today to activate your warranty coverage and ensure full manufacturer protection for your investment.
RMA Registration
Upgrading, refurbishing, or experiencing a fault? Register here for a Return Merchandise Authorization and our team will guide you through the repair or replacement process.
Extended Warranty
Extend the warranty period of your Enerbyte Tech product and enjoy long-term peace of mind. More coverage means more protection for your critical power systems.
