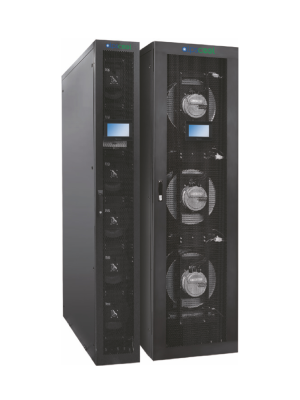

AFS DX/CW In-Row Precision Cooling System for Micro Data Center
-
- Alpscool AF series precision air conditioner is elaborately designed for the specific cooling needs of the new generation of high heat density data center
- The design is close to the heat source application. It adopts a brand-new air flow distribution method and serves the data center with high reliability, high efficiency, energy saving, accurate measurability, and flexibility.
Accurate and Measurable Cooling
AF series Inrow precision air conditioner directly deals with the hot air discharged from the server, shortens the air flow path, prevents cold and hot air from mixing together, minimizes airflow loss, and eliminates the uncertainty of airflow and cooling through the design of closeness to the hot source. Through real-time monitoring of heat source load change and accurate adjustment of cooling capacity output and fan output, the cooling capacity and air volume can be accurate and predictable so that more targeted accurate cooling can be achieved and the problem of high-density heat dissipation of data center can be perfectly solved.
lnrow Cooling Features
More Reasonable and Accurate Air Distribution
AF series can accurately predict airflow path, and the generated airflow is reasonably distributed in the inlet of the front door of the cabinet so that cold airflow can be delivered to the desired place precisely; Moreover, the unit adopts the EC step less speed regulation DC fan and air volume automatically matches the load change of the server
- Reasonable and accurate airflow control can minimize the loss of cooling capacity and make the planning of the cooling system more reasonable.
- Unique air distribution naturally achieves the containment effect of a cold aisle.
Real-time Monitoring of the Heat Load
AF series unit is compatible with multiple temperature sensors, monitoring the heat load change in real-time, and directly controlling the supply air temperature (the inlet air temperature of servers), which is safe, reliable, and energy-saving, Ensuring that the inlet air temperature of servers adheres to the specified requirements, maintaining the equipment in optimal operational conditions
Flexibility and Compatibility of the Space Application

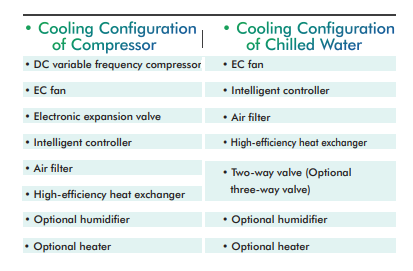

The AF series unit is compatible with racks from major manufacturers, making it suitable for both concrete and raised-floor rooms. With a modular frame for rack sizing, it offers four air supply types and three cooling options. It is flexible for expansion as your business grows.
Dynamic Coordination Output
The IT equipment of the data center run all year round, and the operation condition is constantly changing. The AF refrigeration system works based on the change of the heat load, dynamically coordinates the cooling capacity output, and air volume output of the unit, and realizes real-time matching with the load change to keep the unit running in the best condition.
Precise Air Volume Control
AF series units are standard with the EC fan that can rapidly respond to the output requirements; the effect of energy saving in the part load mode is remarkable, up to 30% higher than the conventional AC fan
Stepless Speed Regulation Compressor
AF series unit adopts a DC variable frequency stepless speed regulation compressor, which can accurately control cooling capacity output by regulating the rotational speed of the compressor, match the heat load change of the heat source in real-time, and achieve accurate cooling and high energy-efficient operation.
Electronic Expansion Valve
The electronic expansion valve controlled by a microcomputer can quickly and accurately control the refrigerant flow in the system with the change in cooling demand. It can always ensure the high reliability and high energy efficiency of the air conditioner system and realize the improvement of unit start-up features, fast and stable working condition control, and better refrigeration performance; Relying on the wide flow characteristics of electronic expansion valve, the air conditioner system can make full use of the lower external ambient temperature and save energy consumption up to 30%.
lnrow Cooling Features
High Return Air Temperature Design
AF series is designed with in a 100% sensible heat ratio with a high return air temperature and it makes the data center operate in a state of more energy saving.
Multiple Sets of Temperature Sensor
Compatible with multiple sets of temperature sensors, real-time monitoring of the heat load changes of the cabinet, and accurate judging for refrigeration output.
G4 Filtrating System
The G4 filter system of the AF series with the filter jamming switch is safe and reliable.
Water Leaking Detection System
Equipped with the water leaking detection system can avoid water leakage and make the system reliable.
Monitoring
Communication monitoring can monitor the unit status, and manage and control the data center in a better way.
Rack Size Design, Compatible with the lT Environment
The compact design and compatibility conforming to different manufacturers make the AF series unit suitable for different data centers.
No Need Raised Floor
The unique style of the AF series is the ideal choice for the data center without the raised floor
Humidifying/Heating System
It can deal with the temperature and humidity of the equipment room without room-level humidifying.
Cold Aisle Containment Effect
Without adding additional air restraint accessories, the unique airflow design has realized the effect of Cold Aisle Containment.
Avoiding the Water Leakage Trouble
Equipped with the condensing water pump, avoid the water leakage hidden trouble and make the system reliable.
